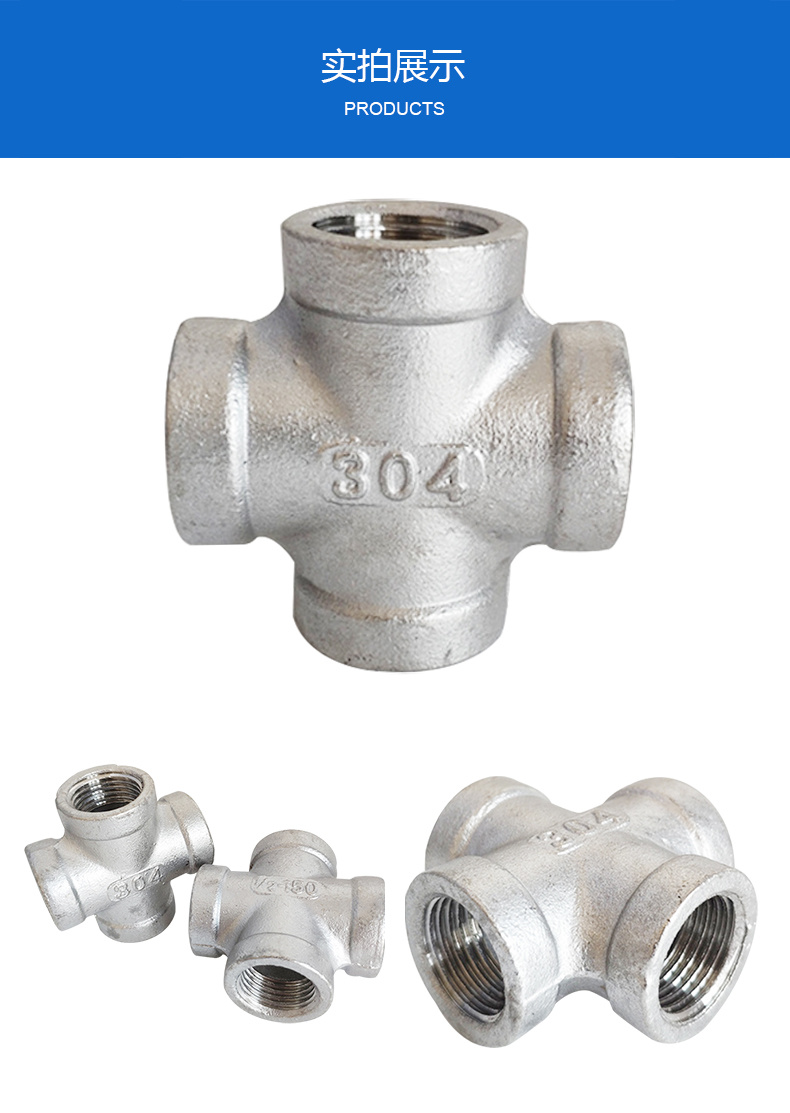

Cross

The four-way has the equal diameter and the different diameter, and the connecting ends of the equal-diameter four-way are all the same size; the main-shaped connecting tube of the different-diameter four-way has the same size, and the connecting tube has a smaller connecting tube size than the main connecting tube.
The welded four-way four-way is a type of pipe used for the branch of the pipe. For the production of four-way pipe with seamless pipe, the current commonly used processes are hydraulic bulging and hot press forming.

Simple structure, small size, light weight, low flow resistance, good energy saving effect

Category:

Threaded valve series

Key words:

Cross

Message

One is a pipe threaded pipe fitting, which includes pipe inner wire, pipe outer wire, pipe single wire and pipe threaded skin pipe joint. Its thickness and length can be customized according to customer's requirements, and its outer surface is polished. The other is cast threaded pipe fittings, commonly known as albino pipe fittings, with internal thread elbow, hexagonal external wire, hexagonal skin pipe joint, internal thread tee, internal thread union, internal thread plug, threaded cap, bushing, reducer tee, the various connection methods such as the reducer head are threaded connections.
Stainless steel quick connector, aluminum alloy quick connector, welded quick connector, threaded quick connector, copper quick connector. It can also be divided into 8 models of type A, type B, type C, type D, type E, type F, type DC, type DP, including 4 male heads of type A, type E, type F, type DP and 4 female heads of type B, type C, type D and type DC. (Quick couplings are generally complete sets of products, and can also be purchased individually according to needs.) Thread types: NPT, PT, PS, DIN connection methods: threaded connection, flange connection, welding, clamping sleeve, quick connection, direct, wrench type, manufacturing materials: stainless steel, aluminum alloy, brass and other conventional materials. Stainless steel 201.304.304 L.316.316L. Can also batch processing other materials. Nominal diameter: DN1 5 ~ DN250mm nominal pressure: 16~64KG applicable temperature: -40 ~ 180C applicable medium: water, oil, gas and some corrosive liquids. Scope of application: industrial, chemical, liquefied petroleum gas. Sealing materials such as vehicle and ship manufacturing equipment: Ding Qing rubber, silicone, ethylene propylene rubber, fluorine rubber connection mode: thread, welding, flange, quick connection, wrench type, etc. Thread standard: NPT/BSPT/BSP/DIN2999
